Electronic Data Interchange (EDI)

In this article
Product Information
Release Notes

Voyage tracking

The following subsections will describe how to view and process the Voyage tracking from the Freight forwarder.
Viewing the Staging table records will also be discussed.

Processing this document provides the ability to update the following tracking leg fields on D365 voyage(s) / container(s):

  • Start date
  • Estimated end date
  • Actual end date
  • Note

The following fields are automatically updated as well when the tracking leg dates are updated:

  • Estimated days
  • Actual days

The tracking leg for the complete voyage can be updated, or per container.

Prerequisites

The following setup is prerequisites for the Voyage tracking

Freight forwarder landed cost setup

EDI > Setup > Freight forwarder landed cost setup
Where the Freight forwarder’s values differ to D365/EDI values - use the following mappings for the Voyage tracking:

  1. Create Shipping port mapping to map the Trading partner’s values to D365 Landed cost shipping port.
  2. Create Modes of delivery mapping to map the Trading partner’s values to D365 Modes of delivery.
  3. Create Activity mapping to map the Trading partner’s values to EDI Activities.
  4. Create Shipping port qualifier mapping to map the Trading partner’s values to EDI Shipping port qualifier.

Document type setup

EDI > Setup > Document types: Voyage tracking

  1. Create Template for the document.
  2. Create Setting profile for the document.

Trading partners

EDI > Setup > Trading partners

  1. If the Freight forwarder landed cost trading partner doesn’t exist, create the new trading partner.
  2. Assign the Freight forwarder landed cost setup to the trading partner’s options:
    • Shipping port mapping: Options from EDI > Setup > Freight forwarder landed cost setup > Shipping port mapping
    • Modes of delivery mapping: Options from EDI > Setup > Freight forwarder landed cost setup > Modes of delivery mapping
    • Activity mapping: Options from EDI > Setup > Freight forwarder landed cost setup > Activity mapping
    • Shipping port qualifier mapping: Options from EDI > Setup > Freight forwarder landed cost setup > Shipping port qualifier mapping
  3. Add and enable the Voyage tracking document to the Freight forwarder landed cost trading partner and select the applicable:
    • Template
    • Setting profile
    • Search mask

Processing

Inbound files have the following three steps:

  1. Import - Imported file can be viewed in EDI > Files > Inbound files.
  2. Import to staging - Imported file is processed to staging record/s. The staging record/s can be viewed at EDI > Documents > Freight forwarder landed cost documents > Voyage tracking.
  3. Staging to target - The staging record/s is processed to target. If the Voyage tracking is succefully processed the relevent D365 Landed cost Voyage or Container’s tracking leg will be updated.

Create document

alt text

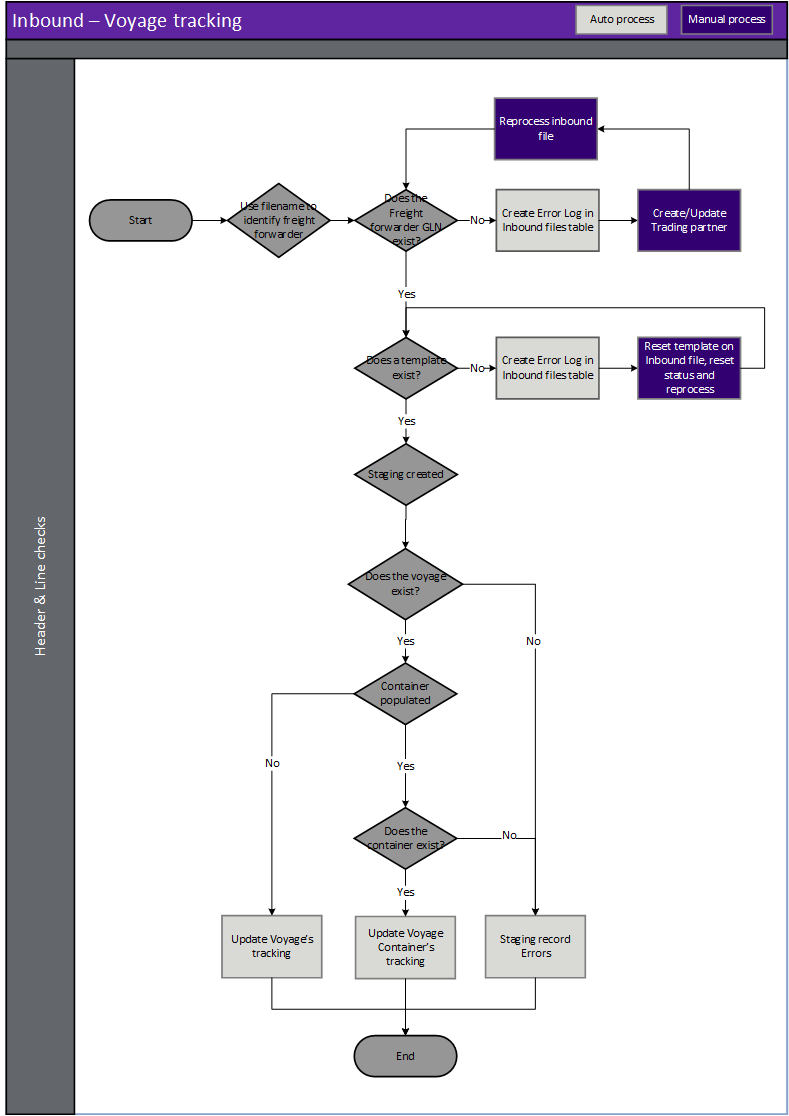

Header checks for Voyage tracking

Header checks are performed when:

  1. Importing Voyage tracking file
  2. Processing from import to staging
  3. Processing from staging to target

alt text

Step 1 - Import

When an EDI file is imported, the file name is key to identifying the trading partner and therefore the document template. See Trading partners for further details. It is based on this document template that the data within the file is identified and a record created in the EDI staging table in the next step.

Note: The file mask is used to identify the trading partner and therefore template

Step 2 - Import to staging - Inbound file validation

When the EDI file is retrieved and imported, there are various validations that are completed before the staging record is created in the EDI staging table. If the processing of Import to staging errors, the Inbound file’s Status will be set to Error and no staging record created.

Rule Id Details
Check Template Identify a template for the Trading partner/Document type. This will be used to identify the whereabouts of data within the file

Possible issues and fixes

Import to staging errors for EDI file can be viewed in:

  • EDI > Files > Inbound files filtered to Status set to Error
  • EDI > Document maintenance, tab 3PL documents, tile File import errors

At this step the issues are usually around the file not matching the template.

  • Does the file have the correct template assigned (General tab, field Template):
    • No: Use Reset template to assign a different template. If this should apply to future documents for the Trading partner, also update in Trading partners.
    • Yes: Review Log and fix the applicable template in EDI > Setup > Document types. Examples issues are date format, new field.

Example error for file not matching template: ‘Segment ‘<xml’ not found in EDI template mapping’

Step 3 - Staging to target

If the processing of Staging to target errors, the staging record’s Staging to target status will be set to Error and the D365 Landed cost voyage’s tracking leg won’t be updated based on information from the staging record.

Possible issues and fixes

Staging to target errors for Voyage tracking can be viewed in:

  • EDI > Documents > Freight forwarder landed cost documents > Voyage tracking filtered to Staging to target tatus set to Error
  • EDI > Document maintenance, tab Freight forwarder landed cost documents, tile Voyage tracking errors
  • EDI > Document maintenance, tab Freight forwarder landed cost documents, Documents page, tab Voyage tracking

At this step the issues are usually around mapping/business logic issues.
Review the Log or Version log for the applicable record to find the issue.
Example errors and possible fixes are discussed in FAQ.

Staging line validation

Rule Id Details Error
Voyage Find the D365 Voyage to which the voyage tracking belongs Error at Staging table. No voyage tracking updated

Activity

Activity is mapped on Trading partner form’s Options. This is used to find the applicable leg on the Voyage’s tracking and if the start or end date should be updated.

Example X12 Shipment status codes mapped to D365 Activity in EDI’s Activity mapping:

X12 Shipment status code X12 Description Landed cost Activity Date selection
L Loading Load Start date
AE Loaded on Board at First Port of Load Load End date
VD Vessel Departure Sail Start date
UV Discharged from Vessel at Last Port of Discharge Sail End date
VA Vessel Arrival Sail End date
CT Customs Released Customs End date
AM Loaded on Truck Local Start date
D Actual Door Delivery Local End date

Estimated/Actual days

The Voyage tracking’s document setup specifies what indicator the Trading partner will use for estimated vs. actual days.
Since Landed cost only has an estimate for end dates, the date qualifier doesn’t affect start dates.

Example X12 date qualifiers:

  • 139 = Estimated
  • 140 = Actual

Port qualifier

Port qualifier is mapped on Trading partner form’s Options.

Example X12 qualifiers:

  • L = Port of Loading (From port)
  • R = Place of Receipt (From port)
  • D = Port of Discharge (To port)
  • E = Place of Delivery (To port)

This is used to find the applicable leg on the Voyage tracking to update, for example a port could appear multiple times on a multi-leg journey.

Examples

Examples below using above X12 shipment status codes, port qualifiers and date qualifiers of 139 for estimated and 140 for actual.

Field & Example Tracking leg update result
Activity = L
Date qualifier = 140		 Update tracking leg with Activity set to Load’s Start date
Activity = OA
Date qualifier = 139
Port = CNNGB
Port qualifier = L		 Update tracking leg with Activity set to Sail where CNNGB is the From port’s Start date
Activity = VA
Date qualifier = 139
Port = AUMEL
Port qualifier = D		 Update tracking leg with Activity set to Sail where AUMEL is the To port’s Estimated end date
Activity = VA
Date qualifier = 140
Port = AUMEL
Port qualifier = D		 Update tracking leg with Activity set to Sail where AUMEL is the To port’s Actual end date

View staging table records

To view the Voyage tracking staging records, go to EDI > Documents > Freight forwarder landed cost documents > Voyage tracking.
Use this page to review staging and process the EDI documents. Succesully processing to target adds the relevant purchase and/or transfer orders to an existing open Voyage (if document setting allows) or create new Voyage(s).

List page

The following EDI fields are available on the list page.

Field Description
EDI number EDI Staging table record id. Select EDI number or the Details button on the Action Pane, to view the details for the selected record. The number sequence is determined by EDI number on the EDI parameters.
Company account Legal entity of the document.
Company GLN The company’s global location number is shown here.
Staging to target status The current status of the staging record. Options include:
• Not Started – The staging record has been successfully processed from the inbound file to the staging table but not processed to target.
• Error – The staging record has been processed from the staging table but no target has yet been created/updated. There are errors with the staging record that needs to be reviewed.
• Completed – The staging record has been succesfully processed and updated Landed cost Voyage’s tracking leg.
• Canceled – The record has been manually canceled and will be excluded from processing.
Trading partner account Vendor account of Shipping type set to Shipping company assigned to the staging record.
Trading partner GLN The Freight forwarder’s global location number is shown here.
Created date and time The date and time the selected record was created in the staging table.
Sent Indicates if the Functional acknowledgement outbound has been sent to the trading partner for the inbound document record.
Message Displays the first error’s message from Version log.

Buttons

The following buttons are available on the Voyage tracking’s Action Pane, tab Voyage tracking.

Button Description
Process selected voyages Process voyage tracking for the selected record in the staging table.
Process all voyages Process voyage tracking for the staging records that have a Staging to target status set to Not started.
Inbound files View the inbound file record the selected staging record.
Trading partner View the trading partner details in the Trading partners page.
Voyages If the EDI staging record has been completed it is possible to inquire on the applicable Landed cost voyages.
Show log If there are Errors within the document, it is possible to review them at any time using this button. Shows only the current version.
Version log View all log versions. When a document’s status is reset and reprocessed, a new log version is created. Can view all log versions.
Reset Status You can reset the Staging to target status to Not started. This can be used to reprocess the selected record/s. Documents can only be processed if Staging to target status is set to Not started.
Edit reset status recurrence If the underlying issue was resolved after all the reset attempts have been completed the user can use this button to edit the recurrence field/s. This will:
• Update Reset status profile to blank
• Update the Reset status date/time to next time reset will run
• Reset status attempts set to Zero and
• Recurrence text updated with changed recurrence details
Cancel Select Cancel to update the Staging to target status to Canceled. Button is enabled when the Staging to target status is not set to Completed.

The following buttons are available on the Voyage tracking’s Action Pane, tab Acknowledgement. The Acknowledgement tab is available on all incoming documents staging pages and enables the user to process or view the Functional acknowledgement outbound that has been created for the inbound document.

Button Description
Send to EDI If the Sent field for the staging record is set to No, use this button to create the Functional acknowledgement outbound record and also update the Sent field to Yes.
Reset flag If the Sent field for the staging record has been set to Yes, use this button to reset Sent to No.
Functional acknowledgement Use this button to view the Functional acknowledgement outbound record created for the inbound document.

Header fields

The following EDI Header staging fields are available on the header page.

Field Description D365 header target
Identification FastTab
Identification
EDI number EDI Staging table record id
Company account Legal entity of the document
Company GLN The company’s global location number is shown here.
Staging to target status The current status of the staging record. Options include:
• Not Started – The staging record has been successfully processed from the inbound file to the staging table but not processed to target.
• Error – The staging record has been processed from the staging table but no target has yet been created/updated. There are errors with the staging record that needs to be reviewed.
• Completed – The staging record has been succesfully processed and updated Landed cost Voyage’s tracking leg.
• Canceled – The record has been manually canceled and will be excluded from processing.
Reset status
Reset status profile Reset status profile assigned to the file/document. This will default from EDI shared parameters or can be overridden on Trading partner’s incoming and outgoing documents. The profile can also be changed to another profile which will also reset the Reset status attempts to 0 and reset the Reset status date/time
Reset status date/time Next date/time automatic reset status will run
Reset status attempts Number of reset attempts already processed. The reset attempts will stop once this number reaches the End after as per assigned Reset status profile’s Recurrence
Recurrence Recurrence text. Contains standard details of Recurrence, for example:
• Interval (recurrence pattern)
• How many times the period will run (End after)
• From date/time the recurrence will start

Line fields

The following EDI Line fields are available on the lines page.

Field Description D365 target
Voyage Internal or external id for the Voyage.
Document setting Voyage Id source (External Id or Internal Id) used to find the applicable D365 Voyage
• External Id = Voyage’s Booking reference
• Internal Id = Voyage		 Used to find Voyage target
Shipping container Shipping container identification.
If left blank, the complete voyage’s tracking will be updated. If populated, only the applicable container on the voyage’s tracking will be updated.		 Used to find Voyage’s Shipping container
Activity Activity/ Shipment status code of the voyage.
Used to find the applicable Tracking leg and determines if start/end date is updated.
Mapped values must be used by assigning Activity mapping to the Trading partner.
Voyage tracking document setting profile’s date qualifiers for Estimated and Actual is also required when end date is updated.		 Used to find Voyage tracking leg and which end date to populate
Port Activity location Used to find Voyage tracking leg
Port qualifier If port is provided, indicates if it is the From or To port for the leg Used to find Voyage tracking leg
Mode of delivery Mode of delivery for the leg
Date Date the activity will or has occurred Voyage > Tracking > Start date OR
Estimated end date OR
Actual end date
Date qualifier Specifies the type of Date and mapped in document settings. Options are:
• Estimated
• Actual
Used to determine which Tracking date will be updated where the Activity is for an End date.
Start date doesn’t have an estimated vs. actual, therefor no effect on where date is populated for a Start date.
Note Notes for the tracking update. Will override any current notes for the tracking leg. Voyage > Tracking > Notes

EDI history

Where history logging is enabled, view the applicable EDI staging record(s) via:

  • Voyage - History available on the Manage tab on the Action Pane
Field Description
EDI Document type EDI document type of the staging record
EDI number EDI number and link to the staging record
Reference Additional information for the staging record
Created date and time Created date and time of the EDI staging record
